Furrion RV Camera System
- Backup Camera
- Observation Camera
- 4.3 Inch Display
- Furrion
- Wireless Signal
- Below Rear Clearance
- Built-In Microphone
- Touch Screen
- Anti-Glare
- Mirrored Image
- Night Vision
- Motion Detecting
- Waterproof
- Dashboard Mounting Bracket
- Suction Cup Mount
- 120 Degrees
Wireless backup camera system has a waterproof camera with night vision. Touch screen, anti-glare monitor mounts to your dashboard. 120-Degree viewing angle and motion detector help prevent accidents. IR cut filter blocks infrared light in daylight.
Features:
- Wireless backup camera improves rear-view visibility and obstacle detection for your RV or camper
- Minimizes blind spots and helps prevent accidents
- Camera with CMOS sensor creates high-quality digital video in full color
- Gives you a 120-degree viewing angle
- Features a built-in microphone to pick up audio
- 8 Infrared LED lights surround the camera lens to provide night-time vision up to 16'
- Integrated IR cut filter blocks infrared light during the day to capture natural-looking images
- 4.3" Full-color LCD touch screen monitor shows a mirrored image for a precise view from the driver's perspective
- Auto-dimming, anti-glare screen lets you view the display in any lighting
- Rear assist marker lines show distance from other objects
- Brightness, color, contrast, and image orientation can be easily adjusted
- Speaker projects audio sent from your camera
- Motion detection triggers monitor to power on
- Auto off setting lets you set the monitor to power off after 10, 20, or 30 seconds of inactivity
- Built-in digital transmitter eliminates interference from other devices
- Offers high-quality, uninterrupted video up to 492' away
- Suction cup mount offers a removable mounting option
- Durable, metal construction is dust resistant and waterproof
- IP65-rated to protect against dust and low-pressure water jet spray
- Simple installation - minimal drilling required
- Mounting hardware not included
- System can be used as a backup camera or for observation
- Wire to reverse lights for backup camera
- Wire to running lights for observation
Specs:
- Monitor dimensions: 4-3/4" wide x 3-1/8" tall x 1" deep
- Screen size: 4-5/16"
- Camera dimensions: 6-5/8" wide x 2-9/16" tall x 2-5/8" deep
- Mounting hole spacing:
- Horizontally: 3-3/4" center to center
- Vertically: 15/16" center to center
- Mounting hole spacing:
- Suction cup mount dimensions: 2-1/8" diameter x 3-1/8" tall
- Resolution:
- Monitor: 480 x 272
- Camera: 720 x 480
- Wireless range: 492'
- Voltage: 12V - 24V DC
- Camera cable length: 6'
- 1-Year warranty

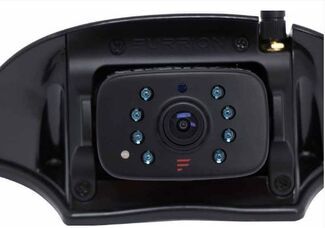

Infrared LED Night Vision
This camera has 8 infrared LED night vision lights that produce a clear, quality picture and give you the flexibility to back up your RV in low-light conditions at dusk or in complete darkness at night.

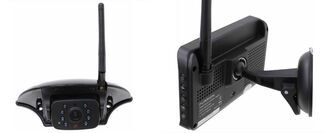

Camera with Built-in Microphone and Monitor with Speaker
The built-in microphone on your camera is the perfect tool for backing up your RV. The microphone allows a friend or family member to relay information and instruction to you through your monitors speaker, providing peace of mind as you work together to safely maneuver your RV.
Rear Assist Marker Lines
No more wondering if you're getting too close to that other vehicle. The rear assist marker lines take the guesswork out when backing up. This helpful tool displays reference points of objects within your view to avoid collisions and safely maneuver your RV.

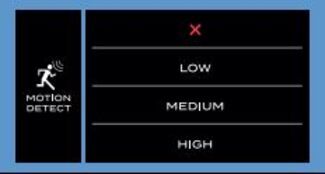

Motion Detection
The motion detect feature allows you to set the motion sensitivity level of your camera to low, medium, or high. On the low setting, your camera will not detect a pesky raccoon until it's very close or already in your garbage, whereas on high setting, it will detect the raccoon approaching from further away. Your monitor will automatically illuminate to alert you once motion is detected.

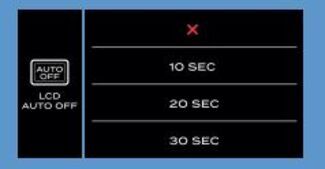

Auto-Off
The auto-off setting is a great power saving option. Working in conjunction with the motion detect setting, this feature allows you to limit the amount of time your monitor stays on. Once motion is detected, you can program your monitor to power off after 10, 20, or 30 seconds of inactivity. The LCD auto off option will only power down the illuminated screen while keeping the monitor on.
729125 Furrion Vision S Digital Wireless Observation System - Night Vision - Rear Mount - 4.3" Screen - Touchscreen
Replaces FOS48TAPK-BL
FOS48TA-BL Furrion Digital Wireless Observation System w/ Color LCD Monitor - 4.3" Screen
FRC12TA-BL Furrion Digital Wireless Backup Camera w/ Color LCD Monitor - 4.3" Screen
Replaces 729125
Alt 405211ET
Alt 110423
Item # FOS43TASF
Installation Details
Customer Reviews Average Customer Rating: 4.7 out of 5 stars (430 Customer Reviews) Wireless backup camera system has a waterproof camera with night vision. Touch screen, anti-glare monitor mounts to your dashboard. 120-Degree viewing angle and motion detector help prevent accidents. IR cut filter blocks infrared light in daylight. Furrion Vision S Wireless RV Backup Camera System w/ Night Vision - Rear Mount - 4.3" Screen - FOS43TASF
- FOS43TASF
by: Randy 10/15/2021
I love this camera! It is so much better than I originally thought it would be. I use it for my rearview mirror when traveling, I can see who is behind my Camper and I don't have to use the add on mirrors on my tow vehicle anymore because I can see now with the backup camera in the rear blind spot and the rest with my tow vehicles mirrors. I also can now back my travel trailer into the campsites without my wifes help and do that with only one try. It has been such a nice experience using this camera system.
- FOS43TASF
I purchased this item to make it easier when backing my travel trailer into a spot. It was very easy to install since my trailer was pre wired for a backup camera. While I have yet to use it, since it is no longer camping season in my area, I have tested it out. It has a very clear and sharp picture. I am excited to try it out for real next season.
- FOS43TASF
Camera works as advertised. Wired camera into running lights 5th wheel. Took about 45 min to layout, drill, pull wire, caulk, and mount. I did install 3mm Diameter Snap on Ferrite Core Bead Choke Ring Cord RFI EMI Noise Suppressor Filter for USB / Audio / Video Cable Power Cord on both camera and receiver. Receiver took about 20 min to install. I routed wires nicely, add choke rings. I have 4 bars running 60 mph. Great purchase and very pleased.
Comments
Camera and receivers still working great. Only issue is antenna broke on camera. Purchased aftermarket router antenna 18". Still have 4 bars.
Randy S - 10/13/2018
- FOS43TASF
We purchased the Furrion FOS43TASF to use as an observation camera while towing our new 2018 26' Jayco Jay Flight travel trailer. Our Jayco came equipped with a pre-wired mount for the Furrion camera. The pre-wired black female cord for the camera was present but someone at the factory forgot to wire it to power, so when I plugged in the camera, there was no juice... I removed the center clearance light on the back of the trailer, used the supplied power cord and to feed in/splice in from the clearance light. Installation only took about 15 minutes. We already made our first trip this season and the camera worked wonderful. Great picture, no delays, very happy being able to see what's in the back and coming along the sides. We didn't use the monitor mount supplied with the Furrion, instead we used a vent phone mount I had for my phone that worked perfectly. This is our second and the best observation camera for towing a trailer we've experienced. The first one was another brand on different travel trailer we just sold. Our experience with that camera was poor picture quality, delays and blackouts. We definitely would recommend the Furrion FOS43TASF.
- FOS43TASF
Just installed this camera and haven't been on a trip yet. But the install and adjustment went very smoothly. I am very impressed that this camera also has Night Vision, on the occasion I might arrive late to my campsite or home. Next trip on 11/19/21 for Thanksgiving with my late husband's family. Excited and blessed!
- FOS43TASF
by: Bradb 02/26/2020
I have the camera on the back of a travel trailer. Having a view of the road behind the trailer is indispensible and I am amazed that they are not legally required. I can also see my bikes on the back rack. The only reason I downgrade it one star is because the suction cup for the monitor in the truck often falls off the windshield.
Comments
Good camera. I gave up on the suction cup and prop the monitor up on the console, which is not ideal. It is almost impossible to see with sunglasses on.
Bradb - 02/27/2021
- FOS43TASF
works great, it was plug and play my new fifth wheel RV came prewired for this camera system. worked very well for back up camp site and backing the RV into the parking spot at home, also helps keep an eye on those tailgaters while going down the highway
- FOS43TASF
This rear observation system was exactly what I needed to give me some eyes in the back of my towable trailer. The system communicates with a 4 bars of strength using a wireless signal between the camera, located at the back of my 24 foot long (2401RG Minnie Winnebago) trailer, and the monitor mounted in the cab of my Ford F150 XLT. The installation was easy and only took about an hour at most. I located the two wires feeding the center clearance light near the top of the trailer and through a new drilled hole just below the light I was able to feed in/splice in, the camera wires to get the power the camera needed. (Tip. Before this I used a pair of 6V batteries in series to get temporary power to the camera to ensure good signal back to the monitor in the truck and that a good rear view was possible from the intended mounting spot). Now I can see from the trailer's back bumper to about 35 feet behind on the road. As usual the Etrailer team was helpful and the order arrived quickly and correctly. Great Job Julie H. for the last minute assist to correct my order.
- FOS43TASF
by: Joe 05/31/2021
My 2019 Keystone cougar was pre-wired for his camera. It made installing it very simple. I've used it for a year now and for the most part it has worked to my expectations. The only problem I am having is it cuts in and out briefly as I'm driving down the road. This does not cause any real problems and I'm not sure what is causing it. It's either that distance is too far or had a loose connection I haven't tracked it down yet. But I would recommend buying the system.
Comments
Thank you for your review. It does sound like the connection may be loose. I recommend to remove the camera from the shark fin mount and make sure the wire connections are fully seated with one another.
--
Heather A - 06/02/2021
- FOS43TASF
by: Charlene 08/23/2021
The RV backup camera system works great! We pull our boat behind our camper. We can watch our boat constantly to make sure no troubles. Plus the camera is a great help when backing the camper up visually. A great product.
- FOS43TASF
Super easy install if your unit is already equipped with the mounting bracket from the factory. The only thing I was not impressed with was the monitor mount. Quite restrictive if your dash is a grained texture you are pretty much restricted to mounting on the windshield which I found a bit annoying. I happened to have a CD slot mount, and we never use the CD player so I tried it. Couldn't have found a better location!!
- FOS43TASF
by: Jeff M 04/23/2020
I like it a lot I double a travel trailer and a atv trailer it helps me keep a eye on the trailer behind the camper and is great for changing lanes. The only thing I would do different is get the bigger monitor. Thanks
- FOS43TASF
I needed a way to see my Indian motorcycle on a trailer behind my 40' fifth wheel. I had Fords system when I bought my new truck, but there was much more wiring than I wanted to tackle and I was hoping for a non wired system. I bought this with my fingers crossed. Very easy installation of less than an hour and the results were what I wanted
- FOS43TASF
The product was great and installed in minutes. Beautiful picture. The shipping from etrailer was lightning fast, as usual and the price was perfect.
Comments
Outstanding, loved it from day one. Beautiful picture. Accurate guidance system.
Doug - 08/15/2021
- FOS43TASF
I was disappointed to learn that the camera will only turn on when my truck's headlights are on (thought I could use it for monitoring while camping), but that's probably a limitation of my camper. Otherwise, it's been great and the camera definitely helps when backing up or driving down the road.
- FOS43TASF
by: Monique 08/16/2021
Well after 6 months in storage after not getting it to work we found out that Forest River has a habit of wiring camera mount backwards. We got the wiring changed and voila!! We love the camera. It helps a lot for backing and traveling
- FOS43TASF
by: Nicholas 06/28/2021
I had the same Furrion but an older version that worked better. This camera goes out every once in a while and often stalls out with a single image. You can't rely on the camera for passing or lane changing because of the video stall. Both antennas are up there is no reason other than poor quality.
- FOS43TASF
by: Michael 09/07/2021
Many will say it's expensive or they want to find a cheaper one. I know this works. I could not imagine towing, driving the highways, getting into spots, putting back in storage - without it. Switches to night mode when it's dark. Has sound so I can turn up the volume and my wife/kids can direct me into spots speaking in a normal voice (not yelling in the campground if we are getting in past dark/quiet hours).
- FOS43TASF
Easy mount/installation with pre-package mount on RV and it does as advertised.
- FOS43TASF
by: Gregory 09/15/2021
Pros: 1. Can see behind me while driving Cons: 1. Screen is too small and lacks clarity 2. Cost is too high Overall: I've used the camera on about half a dozen trips. Knowing what I know now, would I buy it again? No. Too expensive and too little value. It's a cute toy and not much more.
- FOS43TASF
Product arrived on time and easy to install in my fifth wheel which had the Furrion prep package. Installed the camera, attached the trailer to the truck and had instant results. Yolk all of about 20 minutes
- FOS43TASF
Installation was a breeze with the setup I had on my trailer. Reading previous reviews I was expecting I needed to hook the truck up to trailer for it to work. But I don't it is always running. Not sure I like that and I need to figure out why. I will let you know if I get the answer and how it goes when I tow the trailer until then this should be a three but installation was a breeze so I give it a 4.
- FOS43TASF
by: Woody S. 02/22/2020
this camera is great. installed in minutes (rig pre wired ) and easy to use. good for the road to see jerks who crowd in the back, cars passing (although the refresh rate would be better if faster) and good for gas stations and camp sites. would recommend without hesitation. And, George and the team are top notch as usual in getting the buyer into the right product. this is a really good outfit to do business with
Comments
Still working great. Recently used it to back into a tight barn for storage and the infra red feature was awesome. Might consider an upgrade if the refresh rate was substantially upped, but i am satisified. Recommend the product and etrailer.
Woody S - 02/23/2021
- FOS43TASF
by: Wendy 08/05/2021
The camera has been a big plus to our RVing experience. We like the safety it provides while towing to be able to see vehicles approaching from the rear. We also like the volume feature when we back up the rig for communication between driver and spotter.
- FOS43TASF
Everything I needed to add to my trailer. Even though the trailer came already prepped for the Furrion equipment, everything I would have needed was there. I had to find out how my travel trailer was pre-wired to feed power to the camera. My trailer was wired to the lights circuit, but did not connect with the automatic light setting, I had to switch on the lights. Can't wait to try it out on my next trip and return parking. Crossing my fingers.
Comments
After 1st year it is great. I have a hard turn to back into my yard from a busy street. Able to get it done in normally 1 try. Thumbs up.
Robert - 04/22/2020
30
444
Show More Reviews
Ask the Experts about this Furrion RV Camera System
- Furrion Vision S Replacement Monitor Display and Power Cable
The Furrion Vision S Wireless RV Backup Camera System w/ Night Vision - Rear Mount - 4.3" Screen # FR77FR does have a separate display option. However, you can use the 5 inch replacement # FR97FR or the 7 inch replacement screen # FR47FR. Then you will use power cord # C-FOS07TAPK-006 and mount # LC776462. These monitors are only compatible with the Vision S cameras. The older model cameras do not work.
view full answer... - What Back Up Camera Do I Need for a 2020 Grand Design Solitude
The 2020 Grand Design Solitude is pre-wired for the Furrion Digital Wireless Observation System. This system is offered with a 4.3" monitor part # FOS43TASF, 5" monitor part # FOS05TASF, and 7" monitor part # FOS07TASF. The 5" and 7" systems allow you to add up to three additional cameras, the Furrion Vision S Side Camera w/ Marker Light part # FCE48TASL for the sides of the trailer and the Furrion Vision S Rear Camera w/ Sharkfin Bracket part # FCN48TASF for the rear of the vehicle or...
view full answer... - Troubleshooting Signal Issue With The Furrion 4.3 Rv Back Up Camera
To boost the signal on your Furrion Vision S Wireless RV Backup Camera System w/ Night Vision - Rear Mount - 4.3" Screen # FOS43TASF you'll need the 7-Way Vehicle Power Adapter w/ Power Switch for Furrion RV Observation Camera # FR69SR. It will attach in the 7-way and boost the power running to your camera to increase the signal. Note: If you have a 2021 GM vehicle this will not work. A new adapter is being designed but is not on the market yet.
view full answer... - No Picture On Furrion Vision S Camera With 2019 Chevy Silverado 1500
In regards to the Furrion Vision S Wireless RV Backup Camera System part # FOS43TASF, the issue you are having is that the cameras are not getting enough power. That said, this is a common problem on new GM trucks so we have an easy fix which is the 7-Way Vehicle Power Adapter Cable for Furrion RV Observation Camera part # FR69SR.
view full answer... - Camera Kit Options for 2021 Keystone Cougar 31MBS Pre Wired for Furrion
For your 2021 Keystone Cougar 31MBS that is pre-wired for the Furrion Observation system like the 4.3" Screen part # FOS43TASF. There is also the slightly larger Furrion Vision S Wireless RV Observation Camera System w/ Side Marker Light Cameras part # FCE48TASL-05. If you would like side cameras, I recommend Furrion Vision S Wireless RV Observation Camera System w/ Side Marker Light Cameras part # FCE48TASL-07 which comes with a 7" screen. This is very simple plug and play install.
view full answer... - Is the Furrion Camera Power Adapter Needed for a 2019 Chevy Suburban
I don't have a complete list of vehicles the 7-Way Vehicle Power Adapter part # FR69SR is needed on to use the Furrion Vision S Wireless RV Backup Camera System part # FOS43TASF. I am aware it is required for the 2019+ GMC Sierra and Chevy Silverado but not certain on the GMC Yukon or Chevy Suburban. That said, the issue is that the vehicle's trailers running light circuit is not putting out a full 12 volts so you could easily test this yourself with a volt meter to ensure compatibility...
view full answer... - What Components Make Up the Kit for the Furrion 4.3" Vision S Wireless RV Backup Camera System
The Furrion Vision S Wireless RV Backup Camera System part # FOS43TASF is the complete system to use on a trailer pre-wired for a Furrion Backup Camera System and it will make for plug-n-play installation. The kit components are as follows: Furrion Vision S Wireless RV Backup Camera part # FCN48TASF 4.3" Monitor for Furrion Vision S Wireless RV Camera System part # FR77FR Furrion Monitor Power Cable part # C-FOS07TAPK-006 Suction Cup Mount part # LC776462
view full answer... - Furrion Observation System Power Adapter for Side Cameras with 2006 Dodge Ram
Your generation of Dodge Ram truck used a unique setup for the trailer wiring due to the TPIM being what controls the wiring. Based on that and the issues we've seen with the TPIM of trucks like yours the part # FR69SR would be what you'd need.
view full answer... - Recommended Furrion RV Camera System Compatible with Pre-Wired Camping Trailer
There are 3 camera options compatible with your pre-wired 2019 Grand Design Imagine travel trailer. They are the same camera, with different monitor options and two of the three have additional features. The Furrion RV Observation Camera System w/ Monitor and Bracket - Wireless - 4.3" Screen # FOS43TASF due to the screen size does not allow you to expand your system to multiple cameras or views. The 5 inch # FOS05TASF and the 7 inch # FOS07TASF allow up to 4 cameras in quad view...
view full answer...
- Troubleshooting Limited Signal with Furrion Vision S Wireless RV Backup Camera
The Furrion Vision S Wireless RV Backup Camera System w/ Night Vision - Rear Mount - 4.3" Screen # FOS43TASF sounds like it simply has electrical interference or has obstructions causing that weak signal. You may want to replace the antenna with # 772577 and you should put it straight up in the air. The best option in my opinion is to use extension # WVOSAPANTEXT to put the antennas closer together so the signal is stronger.
view full answer...
- Which Backup Camera Do I Need With 2020 Grand Design Solitude Fifth Wheel
Your 2020 Grand Design Solitude is pre-wired for the Furrion Vision S Backup Camera system with night vision # FOS43TASF that comes with a 5" display screen. You could also use Furrion Vision S Wireless RV Observation Camera System w/ Side Marker Light Cameras # FCE48TASL-05 as well which is the same system but it comes with blind spot side marker lights with built in cameras. If you would like a larger screen I recommend # FOS07TASF or the camera with the 7" display screen. This system...
view full answer... - Correct Back-Up Camera System for a Pre-Wired 2020 Keystone Montana 5th Wheel
The Furrion Vision S Wireless RV Backup Camera System part # FOS43TASF is exactly what you need for a 2020 Keystone Montana 5th Wheel pre-wired for a backup camera. It will offer plug-n-play installation once you switch the camera from the new bracket to the bracket on the trailer. The Furrion Vision S Wireless RV Backup Camera System is an excellent option and one of the best on the market. If you would like to use traffic cameras as well to cut down on blind spots, you can upgrade...
view full answer... - Trailer Connector Adapter with Lamp-Out Sensor to Pair Furrion Observation Camera
If the solution the manufacturer provided you to pair the Furrion Vision S Wireless RV Backup Camera System # FOS43TASF was a lamp out sensor I definitely recommend going that route. The Trailer Connector Adapter w/ Lamp-Out Sensor Bypass # 20142 is designed to allow the sensors to detect power so this is the part you would want to use on your 2019 GMC Sierra.
view full answer... - Does 2019 Keystone Springdale 303BH Have to Use Voyager WiSight Camera
You don't have to go with a Voyager WiSight observation system like the part # WVHS541 that your 2019 Keystone Springdale 303BH was designed for but this would be the easiest install since the bracket is already present. You can use a Furrion kit like the part # FOS43TASF that you referenced instead but you'd have to swap out the mount on your RV and replace it with the one that comes with this kit. Aside from that the install would be basically the same so if this is the kit you'd prefer...
view full answer... - Furrion Vision S Cameras Wont Power On With 2019 Chevy Silverado
The Furrion Vision S Wireless RV Backup Camera System part # FOS43TASF will work on a 2019 Chevrolet Silverado but you need an adapter, the 7-Way Vehicle Power Adapter Cable for Furrion RV Observation Camera part # FR69SR. The running light circuit does not have enough power for the cameras on this particular truck which is why this adapter was created.
view full answer... - Backup Camera Options for 2020 Forest River Surveyor 200MBLE
Yes, the Furrion Vision S Wireless RV Backup Camera System # FOS43TASF is what fits the mounting bracket on your 2020 Forest River Surveyor 200MBLE. You can technically install something else if you want but the Visions S is a popular system and since it attaches right up to what you already have I recommend going with that option. The Vision S is also available with a 5" Monitor as part # FCE48TASL-05 or a 7" Monitor (with extra cameras) as part # FCE48TASL-07 OR # FR98NR. It's worth...
view full answer... - Correct Backup Camera for Pre-Wired 2018 Keystone Cougar 5th Wheel
The correct Furrion Vision S Wireless RV Backup Camera System for a 2018 Keystone Cougar 5th Wheel is part # FOS43TASF for a 4.3" screen, part # FOS05TASF for a 5" screen, or part # FOS07TASF for a 7" screen.
view full answer... - Furrion Backup/Observation Camera Working Intermittently on Volkswagen Atlas
It definitely sounds like the 12 volt trailer accessory circuit of your VW Atlas is at fault. This type of issue isn't uncommon for German vehicles as they make some of their circuits just more complicated. The easy solution is use the adapter part # C57003 which puts a bit more resistance on the circuit and will trick the vehicle into thinking there's a trailer connected and give the circuit the amperage and voltage more consistently.
view full answer... - Can a Hopkins Camera System be Used with a Furrion Factory Camera Prewire Setup
I'm sorry but the Furrion systems and the Hopkins systems are not compatible with each other. The most cost effective solution I have is the Furrion Vision S Wireless RV Backup Camera System w/ Night Vision part # FOS43TASF if you want to use that particular base. You do have the option of not using the Furrion base and the power from the marker lights instead and still be able to use the Hopkins VueSMART RV and Trailer Backup Camera part # HM34FR and view it through your smart phone.
view full answer... - 2020 Grand Design Solitude 310GK Furrion Observation System Kit with Rear and Side Cameras
For your 2020 Grand Design Solitude 310GK that is pre-wired for a Furrion observation system we have the Vision S Wireless RV Observation Camera System w/ Side Marker Light Cameras # FCE48TASL-05 which would be all that you'd need. It comes with the rear and side cameras as well as a 5 inch display that allows you to easily view the cameras and select the different views as needed.
view full answer... - Replacement Camera System for Old Furrion Wireless Camera System
Yes. There is a newer option that uses that same mounting and wiring. I recommend the Furrion Vision S Wireless RV Backup Camera System w/ Night Vision - Rear Mount - 5" Screen # FOS05TASF or the larger 7 inch monitor system # FOS07TASF. These are an upgrade in almost every way from the previous system that has been discontinued. This is by far the most popular camera system currently on the market because of the factory wiring and mount designed for this system. The 5 and 7 inch...
view full answer... - Furrion Camera System for a 2020 Freedom Express Ultra Lite
Thanks for the info! We have exactly what your friend needs for their 2020 Freedom Express Ultra Lite. The part numbers you are referencing belong to the predeccessor to the Furrion Vision S backup camera system but the Vision S system will still work regardless. The FOS48TA-BL was the 4.3" monitor so the exact equivalent to the parts you mentioned would be the kit # FOS43TASF. This comes with both the monitor and the camera so that's all they would need. It is worth noting that the...
view full answer... - Advice for Wiring Furrion Camera to Constant Power for a 2019 Keystone Cougar 27RES
Your best bet is to look for an outlet or appliance for your 2019 Keystone Cougar 27RES that receives constant power and then tap into that 12V power, being sure not to overload that circuit. I wish I had a specific wiring diagram for your camper that I could give you to wire your Furrion Vision S Wireless RV Backup Camera System like part # FOS43TASF but unfortunately I don't so for specifics you need to consult an electrician and/or Keystone directly to ensure nothing is damaged. I...
view full answer... - Trailer Observation Camera Will Not Pair/Stay On While Using 2019 Chevy Silverado 1500
The issue as I am sure you are aware of is that the trailer lighting circuits on a 2019 Chevrolet Silverado 1500 do not send enough voltage to the running light circuit to power the observation system camera. As of September 2019, neither Furrion or Voyager have came out with a fix for this but I do know Furrion said they would have an adapter which should work with the Voyager system as well in late October 2019. In the meantime, the Trailer Connector Adapter w/ Lamp-Out Sensor part #...
view full answer... - What Backup Camera Is Needed for a Palomino Puma Travel Trailer
Yes, but there is only one system that will work on your Palomino Puma Travel Trailer, the Furrion Vision S Wireless RV Backup Camera System. This system is offered with a 4.3" monitor part # FOS43TASF, 5" monitor part # FOS05TASF and 7" monitor part # FOS07TASF. These three system will all be plug and play. If you like you can add up to three additional cameras to the systems with 5" or 7" monitor, the Furrion Vision S Wireless RV Backup Camera part # FCN48TASF for the truck or wherever...
view full answer... - Which Furrion Backup Camera Kit Fits Rockwood Geo Pro FBS19 and Which is Best
Yes, the Furrion 4.3 inch # FOS43TASF and 7 inch # FOS07TASF camera kits both would fit and work well on your Rockwood Geo Pro FBS19 that is pre-wired for a camera setup. I'd go with the 7 inch display as it will be easier to view and also because it has ability to be upgraded with side cameras like the kit part # FCE48TASL for even better visibility when towing which is not compatible with the 4.3 inch kit. I attached an install video for the mentioned kits for you to check out as well.
view full answer... - Furrion 5" RV Observation Camera System # FOS05TASF vs Furrion 4.3" # FOS43TASF
Both the Furrion 5" RV Observation Camera System # FOS05TASF and the 4.3" # FOS43TASF include the same waterproof camera with infrared LEDs to provide nighttime vision. The only differences between the 2 systems have to do with the monitor itself. In addition to the size difference, the 5" Monitor with the # FOS05TASF separates itself with its compatibility with up to 4 cameras along with a speaker that lets you hear audio sent from the camera. Other than that the two systems are nearly...
view full answer... - Furrion Camera Wont Power On While RV is Plugged In But Works Inside Truck
The 7-Way Vehicle Power Adapter Cable for Furrion RV Observation Camera part # FR69SR is an adapter created by Furrion for the Furrion Vision S Wireless RV Backup Camera like part # FOS43TASF to help with applications where there isn't sufficient power being sent to the trailer connector which sounds like the issue present. The most common vehicles we see this adapter needed are the late model GM trucks but there are others as well.
view full answer... - Furrion FOS07TADS Camera No Signal on 2020 Chevrolet/GMC Silverado/Sierra 2500HD
On your 2020 Chevrolet Silverado, the lighting circuit of your 7-way plug does not carry enough amperage to power the Furrion Camera # FOS43TASF. The Furrion 7-Way Vehicle Power Adapter # FR69SR is a one piece design that acts as an extension to the 7-way plug. This is a great option as long as moving parts on the trailer won't cause any contact with the adapter or plug.
view full answer... - Is Furrion Vision S Backup and Observation Camera System Worth the Money
Your RV is pre-wired for a Furrion camera, a Vision S observation camera system to be specific, like the 4.3" Screen # FOS43TASF, 5" Screen # FOS05TASF or 7" Screen # FOS07TASF, which use a 2.5 x 5.5 mm barrel DC power plug. There's a variety of different power plugs used on backup cameras, but it's safe to say that the 2.5 x 5.5 mm barrel plug isn't typically what you find. This means that you'll likely need to either fabricate a power connector of your own, or hard wire any aftermarket...
view full answer...
